Very Sturdy and Compact Design
Engineered for durability and space efficiency—ready for industrial-scale performance.
Laminating Lines

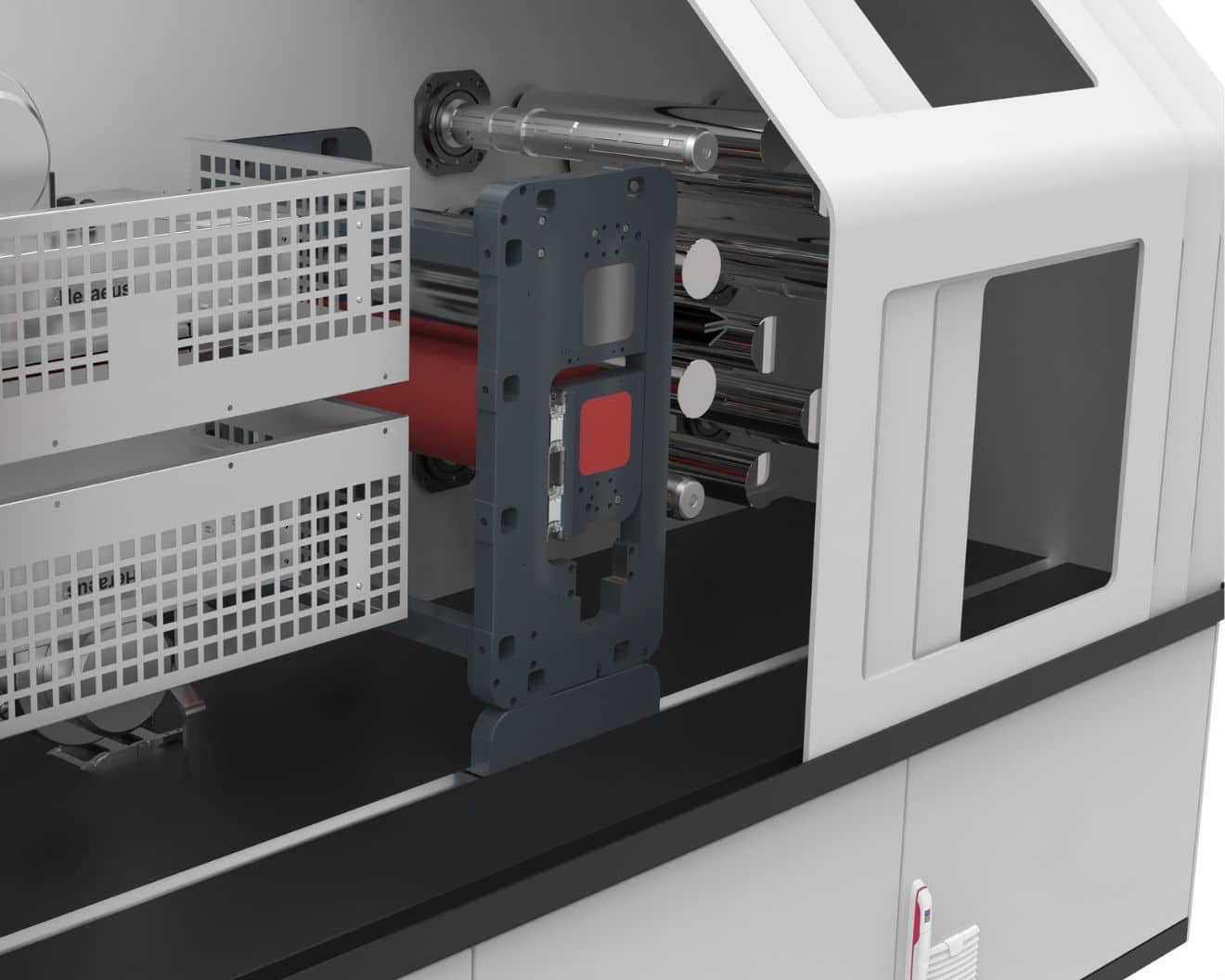

Laminator for Catalyst Coated MembranesDesigned for continuous lamination of catalyst-coated membranes
Catalyst coated membrane lamination

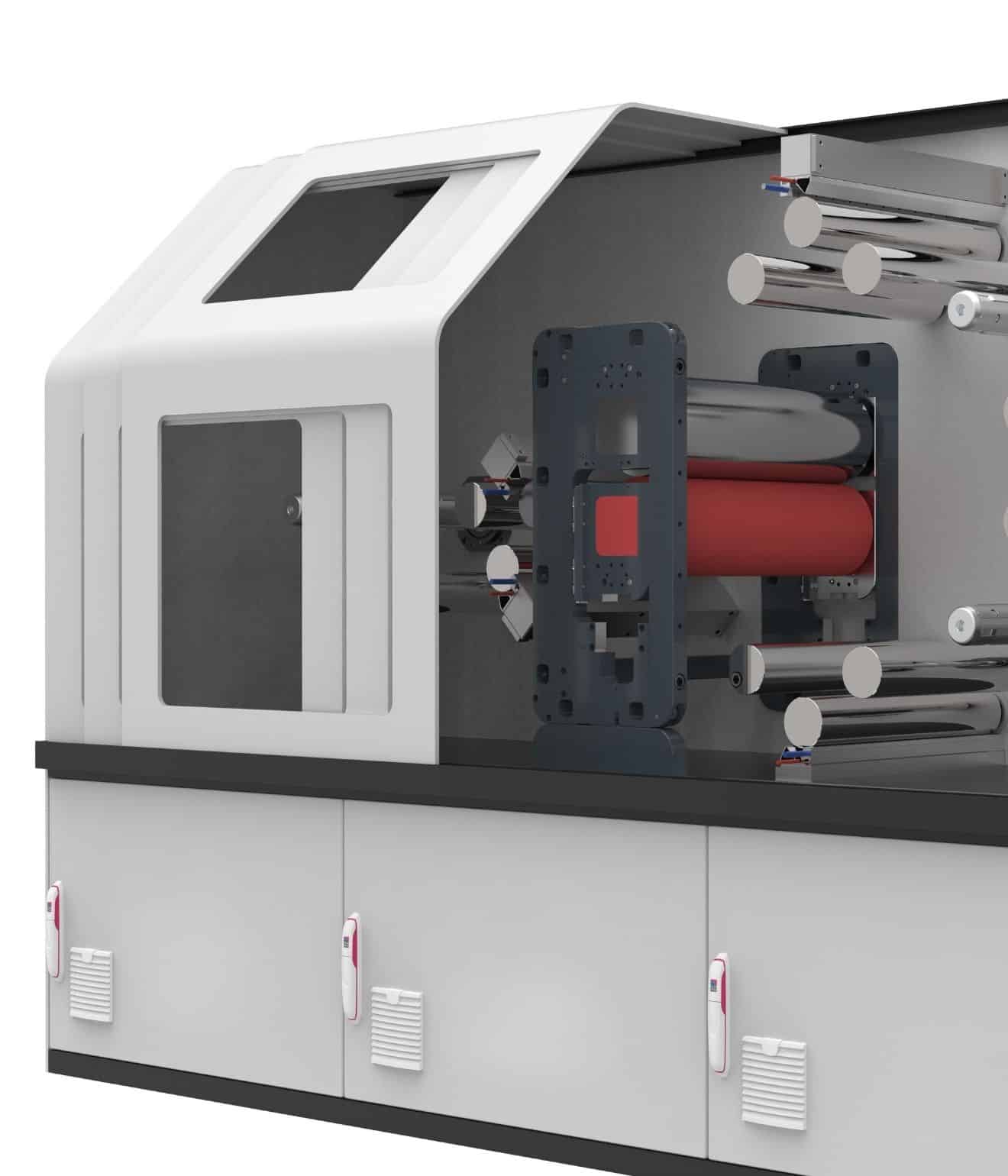

Technical Specifications
Engineered for Precision. Built to Scale.
Our laminating systems are designed to meet the rigorous demands of catalyst coated membrane (CCM) production. From delicate material handling to exacting thermal control, every technical element is engineered for high-performance, repeatable results. With scalable specifications and industry-leading accuracy, this solution bridges R&D and high-volume manufacturing - empowering hydrogen innovators to scale with confidence.
Specs List Title
Web width
up to 800 mm
Material Width
500 mm
Production speed
10 m/min
Roller diameter
up to 500 mm
Gap accuracy
±1 μm
Compression force
up to 15 tons
Roller temperature
+10 °C up to +200 °C
Optional Add-Ons for Enhanced Precision, Control, and Automation
Every production environment is unique. That’s why our laminating solution is built to adapt. From precision controls to quality assurance and smart automation, these optional features empower you to scale performance, ensure consistency, and meet evolving requirements – seamlessly and efficiently.
Electro-Hydraulic Control Engineering
Enhance machine responsiveness and pressure consistency with precise electro-hydraulic regulation – ideal for sensitive lamination conditions.
Non-Contact Thickness Measurement
Monitor critical coating and membrane thickness in real time without surface interference. Delivers quality assurance with accuracy and speed.
Non-Contact Web Cleaning Device
Remove particulates and surface contamination using touch-free systems that protect sensitive coated materials throughout production.
IR Preheating (IR-Field, S-Roll Design)
Ensure optimal lamination temperatures and material prep using energy-efficient infrared preheating for uniform surface activation.
Cutting Units
Integrated cutting systems enable inline trimming, slit width adjustments, and waste reduction without disrupting material flow.
Splice System
Seamlessly join material webs without stopping production. This feature supports continuous operation and reduces downtime.
Remote Maintenance
Remote diagnostics and service capabilities allow real-time troubleshooting, minimizing downtime and accelerating recovery.
Inline Inspection System
Capture, analyze, and verify material quality instantly. Defect detection ensures consistent product standards are met.
Marking System
Enable traceability and product identification with customizable inline marking—ideal for quality control and compliance tracking.
Your Advantages at a Glance
Our laminating systems are engineered with every detail in mind - from core mechanics to ease of use. These built-in advantages ensure operational excellence, adaptability, and long-term value across any production environment.
Cantilever System for winders
Delivers precise motion control, reduces slippage, and improves process reliability.
Inline/Offline Applications
Seamlessly integrates into existing lines or operates as a standalone system.
Easily Operated
User-friendly interface designed for intuitive setup, control, and monitoring.
Fully Automated and Enclosed
Streamlines workflow with minimal manual intervention for consistent output.
Closed Loop Control
Real-time feedback ensures consistent quality by automatically adjusting parameters.
One-Stop-Shop
From design to installation and service—we provide complete, integrated solutions.
Data Sheet
Key applications & industry sectors
From precision machinery to breakthrough energy applications, our innovations extend far beyond a single solution. Dive deeper into the technologies and industries we’re helping transform.

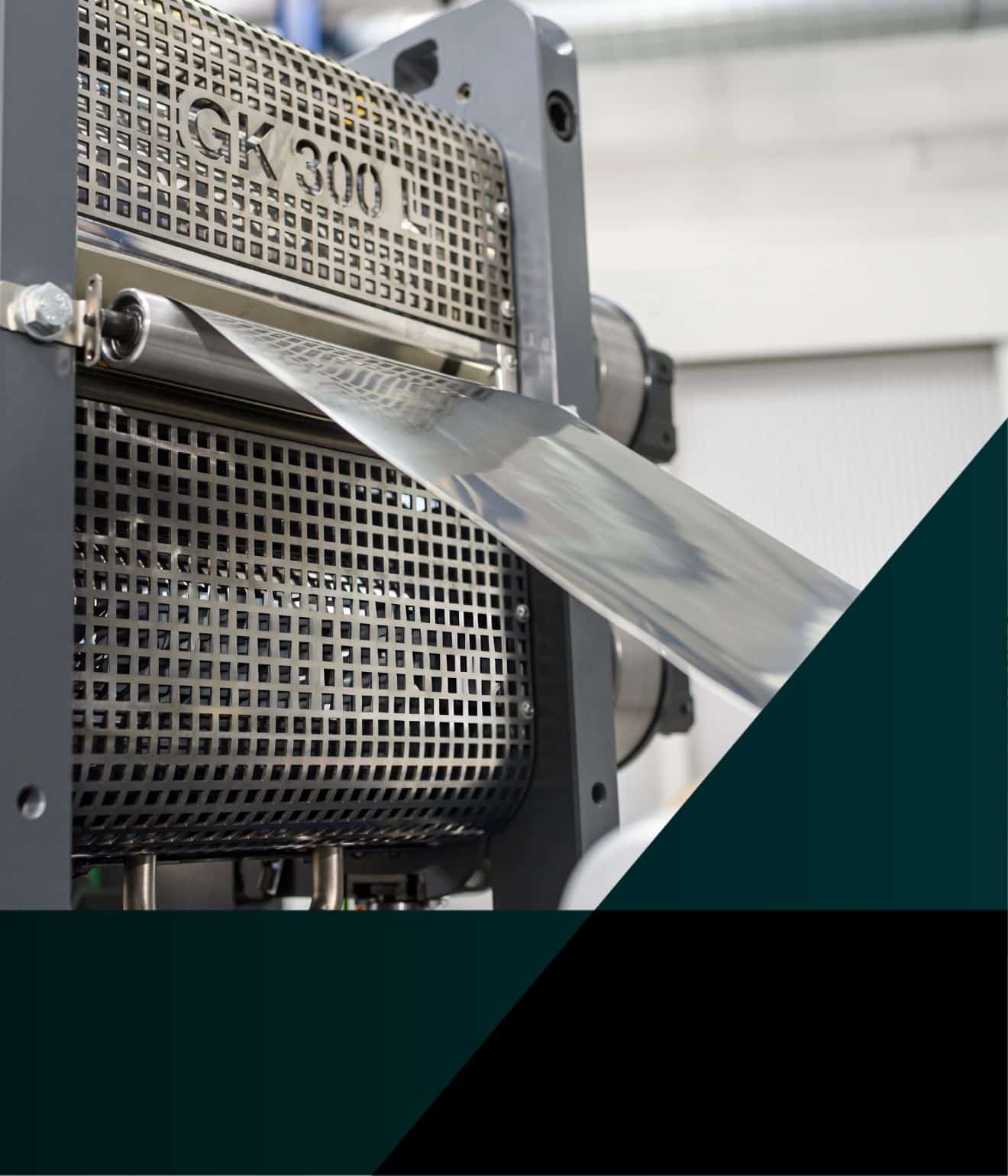

Embossing Calender for Bipolar Plates
